Wall Solution

Efficient communication, durable, customizable, engaging displays.

Whether it be a self-service store, conference booth, home automation, or a hotel lobby, the IVY Wall Displays are the perfect solution for self-service communication within your venue. These displays feature user-friendly interfaces and high-definition screens, ensuring clear and effective communication.

They are built with robust materials for durability and offer customizable software options to meet specific needs. IVY Wall Displays enhance the overall user experience by providing quick access to information, streamlining operations, and promoting engagement.

Universal Compatibility
Customizable Angles
Elegant Design
Effortless Installation

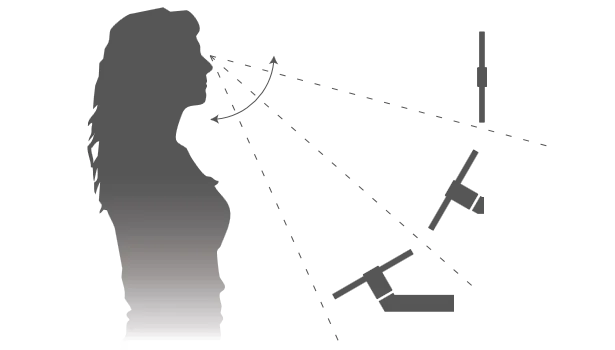

Ergonomics

Positioning the tablet correctly for the user is very important to ensure proper use. As a rule of thumb the screen should cross the viewing direction at approximately a 90 degree angle.

We offer different types of wall displays to ensure that the tablet can always be positioned in the correct way for your venue.

Versatile
User Interface
Durable
Customizable

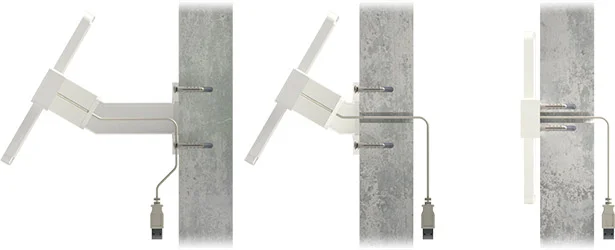

Cable routing

The power cable can be routed on or through the wall, depending on the possibilities on site. This flexibility ensures seamless integration into any environment, whether for permanent installations or temporary setups.

Additionally, our expert support team can provide guidance on optimal cable management solutions tailored to your venue's requirements.

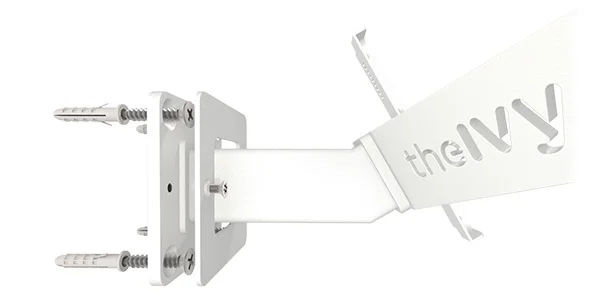

   Fixations

The IVY Wall Displays are screwed onto the wall. We advise using the maximum size of a 6.0 mm x 50mm sunken head screw combined with Fischer® plugs (included in the package).

A decorative cover will hide the screws, preventing your IVY from unauthorised removal.

Specification

Version

 desk series 0 degrees flat
0° Flat
 desk series 30 degrees short
30° Short
 desk series 30 degrees long
30° Long
 desk series 60 degrees long
60° Long

Tablet Orientation

 Landscape & Portrait Landscape Landscape & Portrait Landscape & Portrait

Screen Depth

Distance from center screen to wall

 18 mm (0.7 inch) 80 mm (3.2 inch) 150 mm (5.9 inch) 180 mm (7.1 inch)

Included items
Lock and keys + 4 6.0x50 mm PZ screws + 4 Fischer® UX plugs

Optional items
USB extension cord 1.8 or 3 meter (6 or 10 foot)

Color options
'Traffic White' (RAL9016) / 'Traffic Black' (RAL9017) / Chromium-plated / Custom RAL color (more information)

Material
Steel with Powder-coat or Chromium-plated finish

Weight from

Depending on fixation type and tablet model

 0.75 kg (1.7 lbs) 1.15 kg (2.6 lbs) 1.25 kg (2.8 lbs) 1.35 kg (3 lbs)
