IVY Wall Display
Wall-mounted, lockable tablet display for self-service points, booking panels and lobbies, with cable routing on or through the wall.
- Tablet orientation
- 0° Flat: landscape & portrait 30° Short: landscape 30° Long: landscape & portrait 60° Long: landscape & portrait
- Verified specsAs published for this model
- InstallationAvailable on request
- Quick replyWithin one working day
Overview
About the IVY-WALL
The IVY Wall Display turns a tablet into a self-service point on any wall — a hotel lobby, a conference booth, a meeting-room booking panel or a home-automation controller.
Four versions let you position the tablet so the screen crosses the viewer’s line of sight at roughly 90°. Power can be routed on or through the wall, and a decorative cover hides the fixing screws to prevent unauthorised removal.
Key features
-
Universal compatibility
Works with a wide range of tablet models.
-
Customisable angles
Four versions from 0° Flat to 60° Long.
-

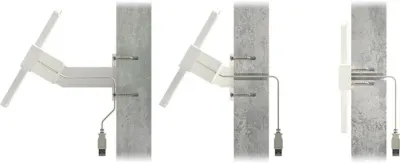

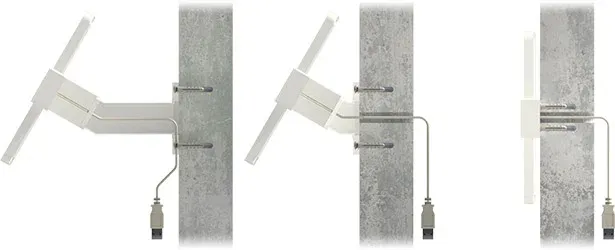

Cable on or through the wall
Choose surface or concealed routing on site.
-

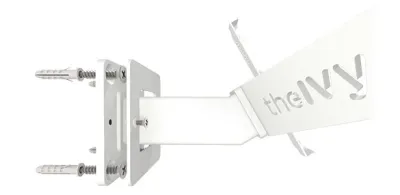

Concealed fixings
A decorative cover hides the screws.
-
Lock and keys included
Secure in public, unattended spaces.
Technical specifications
IVY-WALL specifications
Values as published for this model. Check your display’s VESA pattern and weight before ordering — we’re happy to confirm it for you.
General
- Versions
- 0° Flat · 30° Short · 30° Long · 60° Long
- Tablet orientation
- 0° Flat: landscape & portrait
30° Short: landscape
30° Long: landscape & portrait
60° Long: landscape & portrait - Screen depth (centre of screen to wall)
- 0° Flat: 18 mm (0.7 in)
30° Short: 80 mm (3.2 in)
30° Long: 150 mm (5.9 in)
60° Long: 180 mm (7.1 in)
Installation
- Fixing
- Screwed to the wall — sunken-head screws up to 6.0 × 50 mm with Fischer® plugs
- Included items
- Lock and keys + 4 × 6.0×50 mm PZ screws + 4 × Fischer® UX plugs
- Optional items
- USB extension cord 1.8 m or 3 m (6 or 10 ft)
Construction
- Material
- Steel with powder-coat or chromium-plated finish
- Colour options
- RAL 9016 Traffic White · RAL 9017 Traffic Black · Chromium-plated · Custom RAL
- Weight from
- 0° Flat: 0.75 kg (1.7 lbs)
30° Short: 1.15 kg (2.6 lbs)
30° Long: 1.25 kg (2.8 lbs)
60° Long: 1.35 kg (3 lbs)
Depends on fixation type and tablet model
Gallery
A closer look
Request a quote
Quote IVY-WALL for your project
Tell us quantities, screen sizes and the site. We will confirm fit, lead time and installation, and send a written quotation.
